PHP-MySql Universal Connection: The Try/Catch Exception Tweak

universal2In 2012, I posted a little piece on a PHP-MySql connection utility. Since the time of the original posting, I’ve used that utility again and again. It’s been used in my own applications (many of which have appeared on this blog), with my clients, and with others who I was able to help. Other than minor tweaking with the replacement of a conditional if statement with the try/catch exception, it has remained largely unchanged.

Recently, John Slegers from Belgium provided some thoughtful comments for refactoring the little utility. (Being a big Salamander fan [Netflix], I listen to what the PHP folks from Belgium have to say!) His comments inspired some re-thinking, and while I made some changes, they were minor and along different lines. Download the revised version and take a look at it:
Download

Object Thinking

In developing software, I think in terms of objects and object structures. That is, rather than thinking in lines of code and statements, I find it easier to think in terms of what an object does and how it fits into a larger object structure rather than how statements are used. So, in using PHP with MySql, I tend to view connections to the database as something an object handles and I don’t need to worry about otherwise. Recently I was working on an Observer design patter using the built-in SplSubject and SplObserver. It occurred to me that the concrete subject might pull data out of a MySql database, and so I just popped a copy of the universal connect utility in the folder and it’s all set. Figure 1 illustrates it use:

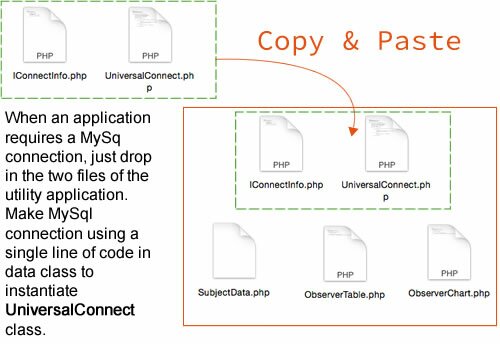

Figure 1: Adding connection utility to small observer

Figure 1: Adding connection utility to small observer

The utility is very small—a single interface and class—but it’s very useful.

The Code

First of all, an interface stores connection information in constants, and as long as you’re using the same database, you can re-use the values. The single method is defined as public and static so that a single line of code can launch the method that uses the constants for connection. It is largely unchanged from the original.

<?php
//Filename: IConnectInfo.php
interface IConnectInfo
{
	const HOST ="localhost";
	const UNAME ="bart";
	const PW ="itchy";
	const DBNAME = "scratchy";

	public static function doConnect();
}
?>

The UniversalConnect class does all of the work for making a connection using the constants in the interface. Again, static declarations mean that the class need not be instantiated to use the method:

<?php
ini_set("display_errors","1");
ERROR_REPORTING( E_ALL | E_STRICT );
include_once('IConnectInfo.php');

class UniversalConnect implements IConnectInfo
{
	private static $server=IConnectInfo::HOST;
	private static $currentDB= IConnectInfo::DBNAME;
	private static $user= IConnectInfo::UNAME;
	private static $pass= IConnectInfo::PW;
	private static $hookup;

	public static function doConnect()
	{
		self::$hookup=mysqli_connect(self::$server, self::$user, self::$pass, self::$currentDB);
		try
		{
			self::$hookup;
			//Comment out / Uncomment following line for develop/debug
			echo "Successful MySql connection:<br />";
		}
		catch (Exception $e)
		{
			echo "There is a problem: " . $e->getMessage();
			exit();
		}
		return self::$hookup;
	}
}
?>

The try/catch exception stops everything cold if the connection is not made, and the Exception provides the information you need to correct it. If the try is successful, it returns the connection to the client.

That’s pretty much it. During development, I like to see the Successful MySql connection message, but once everything is ready to go, I just comment it out. The following little class tests the connection and should not be included in a development folder:

<?php
include_once('UniversalConnect.php');
class UseMySQLConnect
{
	private $doConn;

	public function __construct()
	{
		try
		{
			$this->doConn=UniversalConnect::doConnect();
			echo "Succesful connection";
			$this->doConn->close();
		}
		catch (Exception $e)
		{
			echo "There is a problem: " . $e->getMessage();
			exit();
		}
	}
}
$worker=new UseMySQLConnect();
?>

The line,

$this->doConn=UniversalConnect::doConnect();

takes care of all connection steps for you, and instead of having your code piled up with the same code block required by mysqli() (PHP’s improved MySql function), you just make sure the include_once makes the UniversalConnect class available, and you can use it wherever you need MySql.

Share

PHP Introduction to OOP: UI-Client-Request

clientBasicAn Easy Start

A lot of starting concepts in OOP seem designed to confuse and warn off developers who want to move up to OOP from sequential and procedural programming. This post is to give you a bit of what was presented at the NE PHP & UX Conference and to provide a simple yet clear introduction to OOP applied to PHP.

The easiest way (and least confusing) is to begin with the idea of “objects” and communication between objects. As you may know, objects are made up of classes containing “properties” and “methods.” Properties look a lot like PHP variables and methods like functions. So, think of properties as things a car has–like headlights, a steering wheel and bumpers, and think of actions your car can take, like turning left and right or going forward and reverse as methods.

The “blueprint” for an object is a class, and when a class is instantiated in a variable, it becomes an object. Objects communicate with one another by access to public properties and methods.

At the 2014 NE PHP & UX Conference in Boston, I told those at my session that I’d have some materials for them, and so you can download them here. One is a folder full of examples from my session and the other is an introductory book (in draft form) for getting started in OOP for PHP users. Also, the Play buttons runs the little example program for this post.
PlayconfFilesoopBook

A Request-Fulfill Model

At the heart of OOP is some system of communication. The simplest way to think about communication between objects is a request-fulfill model. A client makes a request to an object to get something. The request can originate in the user UI, and it is passed to a client who finds the correct class and method to fulfill the request. Figure 1 shows a file diagram with an overview of this model:

Figure 1: Object communication

Figure 1: Object communication

In Figure 1, you can see that the only non-object is the CSS file (request.css), and so in a way, you’re used to making requests for an external operation if you’ve used CSS files. However, CSS files are not objects but rather depositories. Likewise, external JavaScript (.js) files can be called from HTML documents for use with Web pages, but they too are not objects.

Encapsulating HTML in a Class

With PHP, the UI is handled by HTML, but that does not mean that it cannot be encapsulated in a PHP object. Encapsulation is not accomplished by simply adding a .php extension to the file name, but rather, fully wrapping the HTML in a PHP class. The easiest way to do that is with a heredoc string. The following example shows how a fully formed HTML5 document is encapsulated:

Listing #1:

< ?php
class RequestUI
{
    private $ui;

    public function request()
    {
        //Heredoc wrapper
        $this->ui=< <<UI
        <!DOCTYPE html>
<html>
<head>
    <link rel="stylesheet" type="text/css" href="request.css"/>
    <title>Request</title>
</head>

<body>
    <h3>Mathster Mind:<br /> The UI Class & Method Requester</h3>
<form name='require' action='Client.php' method='post' target='feedback'>
    <input type='hidden' name='class' value='MathsterMind'/>&nbsp;MathsterMind Class<br />
    <input type='text' name='num' size='6'/>&nbsp;Enter value <br />

    <fieldset>
        <legend>Methods</legend>
    <input type='radio' name='method' value='doSquare'/>&nbsp;Square the value<br />
    <input type='radio' name='method' value='doSquareRoot'/>&nbsp;Find the squareroot of the value<br />
    </fieldset><br />
    <input type='submit' name='send' value='Make Request'/>
</form>
<iframe name='feedback'>Feedback</iframe>

</body>
</html>
UI;
    echo $this->ui;
    }
}
//Instantiate an object from the class
$worker=new RequestUI;
//Call the public method from the instantiated object
$worker->request();
?>

The key aspect of encapsulating HTML in a class is the heredoc wrapper:

//Heredoc wrapper
$this->ui=<<<UI
//HTML Code
UI;

A heredoc string begins with three less-than symbols (they look like chevrons laid on their side), the name you give the heredoc string and it ends with heredoc string name fully on the left side of the source code and terminated with a semi-colon. Typically, the heredoc string is assigned to a variable ($this->ui). The great thing about using heredoc, is that you can develop and debug your HTML document, and once it’s all ready, you just paste it into a heredoc wrapper. Now, instead of a free range chicken running around with snippets of PHP code, you have a fully encapsulated object. Thus, your UI is a PHP class with all of the possibilities and security of a well formed class. (Click below to see how requests are “caught” by a PHP client.)
Continue reading ‘PHP Introduction to OOP: UI-Client-Request’

Share

Change File Permissions on Raspberry Pi: A Mini Post

raspiFilePermEasy as Pi

When I first found out that I had to change the file permissions to use the Memento implementation that stores data in JSON format, I had to change permissions on my Mac’s localhost, my Linux server and my Raspberry Pi sitting on my LAN. I had not done so before on my Raspberry P,i and I figured that some of those who have Raspberry Pi computers may not have either. I use the Raspbian OS, which is a version of the Debian Linux OS, and these instructions are based on that OS. If you have a different Linux OS or even Unix, the CLI commands in the Root Terminal should work for you as well. (Click below to see the directions for making the changes.)
Continue reading ‘Change File Permissions on Raspberry Pi: A Mini Post’

Share

PHP OOP: Encapsulating & Communicating with JavaScript and HTML5

EncapDocCan We Talk?

The initial discussion of the Memento design pattern illustrated how a state could be saved in a different object than the one in which the state originated. A Caretaker object holds the saved state and when requested, it returns the state to the Originator, all without breaking encapsulation. A practical example of employing the Memento that comes to mind is where the user is looking through a list. As she goes through the list, she sees different items (flowers in this case) that she is considering. However, because it’s a long list, she cannot remember which one she likes; so she tags those she is considering. After going through the whole list (all of the different flowers), she can easily recall those that she had tagged–recall them from a Memento. Play the little app and download the source code before going further:
PlayDownload

Communicating with HTML and JavaScript

Working HTML and JavaScript into PHP is no great shakes, and most PHP developers probably have done so at one time or another. However, most of the time I find myself creating horrible mixes of code for a one-off use with nothing encapsulated. The goal here is to see how everything in the application can be encapsulated and at the same time communicate. The purpose here is to find a single state variable that is used by HTML, JavaScript and PHP. Further, that state must be available for placing into a Memento object and stored for later use. (This post simply examines one way to encapsulate everything and have them communicate; however, material from this post will be used in developing a Memento example in a future post.) Also, I wanted to import all of the JavaScript and CSS separately. Figure 1 shows the general plan. (The ‘gardner’ folder contains the flower JPEG images.)

Figure 1: Encapsulating JavaScript, CSS and HTML into EncapDoc PHP class

Figure 1: Encapsulating JavaScript, CSS and HTML into EncapDoc PHP class

The CSS is just the stylesheet and it contained no functionality that you often find when it is used in conjunction with jQuery. I needed the JavaScript for clicking through the images. Had I swapped images using PHP I’d probably have to reload an HTML page with every swap and that seem prohibitively expensive. So I wrote the most simple JavaScript swap program I could think of with two functions for swapping and an added JavaScript function to get the initial starting picture (an integer value) passed from PHP. The following JavaScript listings shows how simple the script is:
Continue reading ‘PHP OOP: Encapsulating & Communicating with JavaScript and HTML5’
